Product description:
ViaBlue™ QTC Spikes receive vibrations from vibrating bodies
such as speakers (such as diaphragms) and devices (such as
transformers) and reduce them. Maximum pressure builds up at connection
point between vibrating bodies and their bases, using a high mass
concentrated on three minimum points (peaks). The vibrations are
eliminated through the extreme pressure points. This leads to vibration
absorption.
Through the vibration reception disk, vibrations are
received on the rotary plate with adjustable height. The vibrations
gathered in the main cone are deflected. Excess pressure builds up and
is transferred to the especially hardened points. On the equally
identically hardened absorption master disk, a maximum pressure point is
then created. The vibrations are eliminated.

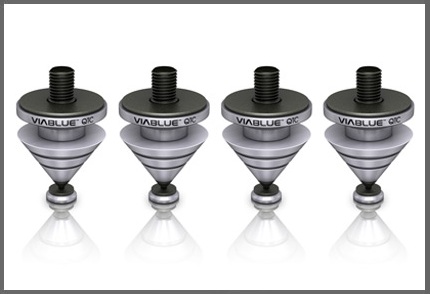

A total of 4 spikes per set are included in the delivery. A
spike consists of: a grounding component with attached master disk,
steel-hardened peak, main cone, rotary disk of adjustable height with
attached vibration reception disk, M6 threaded rod and an M6 drive-in
nut.
With the M6 to M6 thread stick included, QTC spikes can be
tightly connected with speakers or devices. This ensures a steady state
and the best possible connection of the absorption reducer to the
vibrating. For speaker cases and devices with built-in M8 threads,
special M6/M8 thread sticks go from the QTC spikes M6 threads to M8
threads. Optionally M6 to M4, M6 to M8, M6 to M10, M6 to M12 and M6 to
1/4"-20UNC are available.
Technical specifications:
|
