F114 / F118 / F210 / F214 / F218
Disconnect Terminals
Insulated Push-on Disconnects
RATING
The Furutech F250
Insulated Push-on Disconnect Terminal features α (Alpha) phosphor bronze
non-magnetic 24k Gold-plated conductor.
F114 / F118 / F 210 / F 214 / F 218
F 250 (F210, F214, 218) Package: 10 pcs (total 30 pcs) / set
F 210 Package: 10 pcs / set per model
F 118 Package: 10 pcs / set per model
F 114 Package: 10 pcs / set per model
Rhodium plated version by request.
FEATURES
Insulation Tube: RoHS Compliant PVC (Yellow / Blue / Red).
SPECIFICATIONS
F 187 TAB Size: 0.187(w) X 0.032 “(t) / 4.75(w) X 0.8(t) mm
F 250 TAB Size: 0.250(w) X 0.032 “(t) / 6.35(w) X 0.8(t) mm
・Wire Size:
F 114
2.0 sq. mm max. (16~14 AWG)
F 118
1.25 sq. mm max. (22~18 AWG)

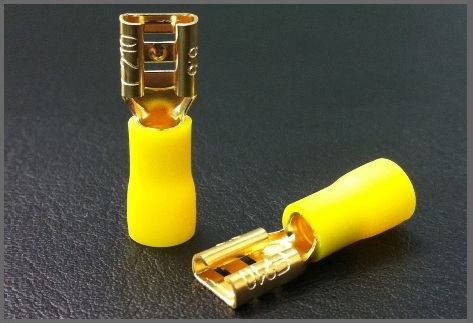

F 210
5.5 sq. mm max. (12~10 AWG)
F 214
