Product description:

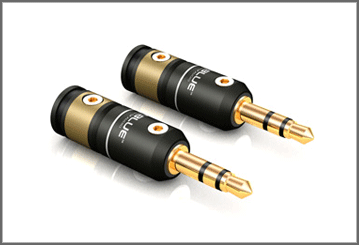

ViaBlue™ T6s phono 3.5 stereo plugs have contact pins madeof bronze which are 24 carat gold-plated. The shells are made ofaluminum. Cables up to 9.5 mm diameters can be installed. All connectorsof the T6s series are supplied including two diameter decreasers. Thosediameter decreasers make an assembly of cables with small and bigdiameter possible and grant a firm strain relief.

For the assembly the stripped cable ends are soldered at thecontact parts of the T6s plugs. The contact part can be removedcompletely from the plug's shell. The M4 screw serves as strain relief.The shell for all plugs (exception: XLR plugs) of the ViaBlue™ T6sseries is identical. Only the contact parts change.

Each T6s plug contains two diameter decreasers which servefor a firm strain relief and centric adjustment of the cables. Thuscables with an outter diameter of 1.5 mm up to 6.0 mm can be fixedfirmly. Without using any diameter decreaser cables up to 6.0 mm can beinstalled.

Technical specifications:

• Max. Außendurchmesser: 9.0 mm
• Contact: 3.5 Stereo
• ROHS conform
• Finishing: 24 Karat Vergoldung
• Total length: 38.5 mm
• Cable entrance: for cables with Ø 1.5 - 6.0 mm
• Packing unit: 2 Pieces
• Screws: 1.5 mm HEX
