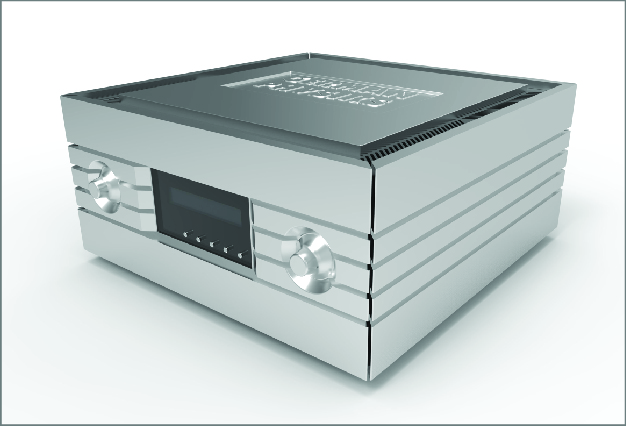

The Emperor Stereo Integrated Amplifier

Product Specifications

Output power (Both channels driven)

300W RMS into 8 ohms

600W RMS into 4 ohms

Frequency response

0.5Hz to 80kHz (-3dB)

1W into 8 ohms

THD + Noise

0.01% (22Hz to 22kHz)

1W into 8 ohms

Maximum dynamic range

127 dB

Signal to noise ratio

- 91 dB A

A weighted @ 1W into 8 ohms

Balanced input

Pre-amp inputs

Unbalanced x 3 pairs

Balanced x 3 pairs

Pre-amp outputs

Unbalanced x 2 pairs

Balanced x 2 pairs

Power amp direct inputs

Unbalanced x 1 pair

Balanced x 1 pair

The Emperor Integrated amplifier incorporates the low level signal circuitry from the Emperor Preamplifier and the power stage from the Emperor Extreme stereo power amplifier to create an integrated amplifier of exceptionally high quality

It uses a 2,500kVA toroidal power transformer and conservatively rated reservoir capacitors, enabling it to deliver 600W RMS into 4 ohms with both channels driven. This ensures that it will drive any German Physiks loudspeaker and almost any other makers’ loudspeakers, while providing excellent dynamics and bass control. Large heat sinks concealed within the case, allow the unit to run continuously at high power whilst remaining cool, thereby improving reliability.

3 balanced and 3 unbalanced inputs are provided per channel, allowing flexibility for use in a wide range of system configurations. Each channel also has 2 balanced and 2 unbalanced preamplifier section outputs, making it easy to add additional power amplifiers when the unit is used in multi-amp systems. Direct inputs are provided for the power amplifier stage, allowing this to be used independently of the preamplifier section.

Output Terminals
1 pair of high quality WBT screw
terminals per channel

Controls
Source select
Volume
Direct input select
Direct input gain
Ground lift
Display on/off

Supplied accessories
Infra red remote control

Other information
Trigger input & output for remote operation
Custom cable used for internal wiring

Finish
Silver anodized aluminium

Dimensions
474 mm W x 240 mm H x 474 mm D

Weight
69kg
