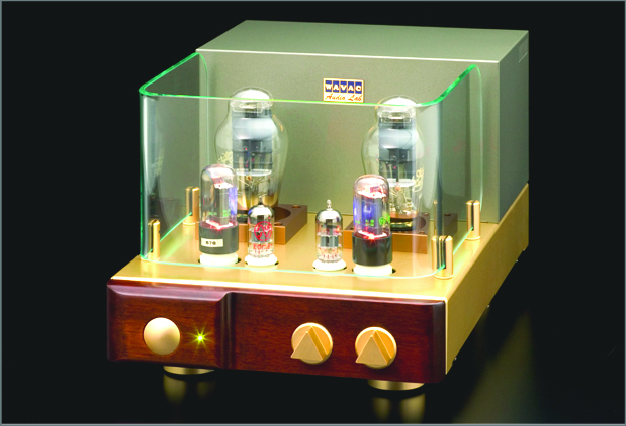

Wavac MD-300B

This amplifier reproduce pure sound field and clear image which is only possible by single ended amplifier.

Direct coupling circuitry between the first and 2nd stage without capacitor in order to keep maximum purity of sound quality.

6Y6 are employed in the second stage as triode operation.

Power tube is driven by interstage transformer for ideal operation of 300B.

Oriented-Highbee-core material are used in all transformers to ensure quality sound reproduction.

Filaments of vacuum tubes are supplied by well-filtered DC current. In order to get clean plate current, MD-300B employs special Silicon-diode rectifiers which minimize noise.

Anti-vibration construction is incorporated in MD-300B. WAVAC Audio Lab. proudly present this new amplifier to the music lovers to meet their listening satisfaction for many years.

Specification

Power Tube	300B
Effective Power output	10 watts per channel
Frequency range	40Hz-50KHz
Input sensitivity	1.0Vrms
Input impedance	100k ohms
S/N ratio	80dB

Power consumption	250 watts
Power supply	100,110,120,220,230,240 VAC 50-60Hz (selected when shipped)
Load impedance	8(4/16) ohms
External dimensions	265Wx420Dx200H(mm)
Weight	17kg
