Dây Điện Nguồn Furutech FP-3TS762
10 AWG α-Conductor(4.93 Sg.mm)
α(Alpha)-μ–OFC Conductor is the fine μ–OFC conductor wire strands treated with the α(Alpha) process.
Giá Đơn vị tính
2.355.000 VND mét

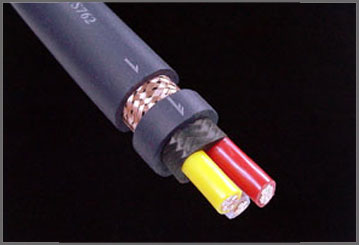

* Conductor :α(Alpha)-μ–OFC Conductor (7X35/0.16mm) (≒10 AWG) / (4.93 sq.mm)
* Insulation:PE(Red、Natural、Yellow) Dia.:5.2mm
Red=Live、Yellow=Neutral、Clear=Earth.
* Twisting:3 Cores Twisted Together
* Inner Sheath:Flexible PVC (Black)
* Shield:0.12mm α(Alpha) conductor wire Braid
* Sheath:Flexible PVC (dark Green)
* Overall Diameter: 15.5 mm

* Electrical Properties / Test Method

Max. Conductor Resistance: 2.4 Ω/km, JISC3005 6 20℃
Min. Insulation Resistance: 2500 MΩ‧km, JISC3005 9.1 20℃
Dielectric Strength: AC 3000 V/1 min., JISC3005 8
